*** DB686 HELEN+ LED curing light & Light activated disinfection DB686 HELEN+system utilises Photo-Activated Disinfection to eliminate bacteria in the treatment of root canals, periodontal disease, peri-implantitis and caries by eliminating all species of oral bacteria on demand.
*** DB686 HELEN+represents a genuine advance in minimal invasive dental treatment.
*** It provides consistent, fast,effective and simple disinfection, with no side effects.
*** For the practitioner there are four important benefits to usingDB686 HELEN+: -Saving time – reduced treatment and single visit treatment possible; -Saving supporting tissue in periodontal disease without antibiotics; -Saving expensive implants by total disinfection of the implant site prior to placement and also of theimplant and surrounding tissue in case of infection; -Saving hard tissue with minimally invasive procedures and encouraging the process of natural remineralisation; Unique benefits to the general dentist: -DB686 HELEN+ kills all bacteria associated with all types of oral lesions -DB686 HELEN+ saves time and enables endo treatment in a single visit -DB686 HELEN+ works only at the infection site, reducing the need for other local and systemic antimicrobials -DB686 HELEN+ compliments minimally invasive treatment as a simple, adjunct to your usual restorative procedure -DB686 HELEN+improves and speeds up the healing process -DB686 HELEN+ is painless and welcomed by patients especially children -DB686 HELEN+ is safe, with no known side-effects Andsignificantbenefitsforpatients *Lesstimetocompleterootcanaltreatment *Lesslikelihoodoffailedrootcanaltreatmen *Lesscomplextreatmentofperiodontalpockets *Lesslikelihoodofimplantfailure *Lessneedforaggressiveantimicrobialsandsystemicantibiotics *Lessinvasivecavityprep *Lessriskofpulpalexposureintreatingdeepdecay *Lessriskoflosingteeth *Lesstraumaforchildrenanddentalphobics Application in Periodontal Therapy 1 Thoroughly debride thesite [SRP] using preferredtechnique 2 Following control of thebleeding from instrumentation,insert the photosensitisersolution into the pocketensuring that it penetrates tothe base of the pocket.
*** Retainthe solution in the pocket for60 seconds.
*** 3 Attach perio tip to the lightguide of the 686HELEN+handpiece.
*** Insert the periotip so that it is in contactwith the bottom of thepocket.
*** Then activatethe light for 60 seconds.
*** 4 Review status after fourweeks.
*** The process maybe repeated if necessary.
*** Application in Peri-implantitis Peri-implantitis compromises the integrity ofdental implants.
*** The bacterial load can bereduced with the DB 686 HELEN+technique suchthat normal healing may occur and help securethe stability of the implant.
*** 1 Mechanically clean the implantbody.
*** Apply Aseptim solutionliberally around (1) andthroughout (2) the implant.
*** Leave for 60 seconds andactivate the Aseptim light for120 seconds.
*** 2If necessary, augmentationcan be done during the samesession.
*** Aseptim Plus may beused prior to implant placementto disinfect the prepared site.
*** Application in Caries Treatment 1Isolate from saliva with cotton woolrolls and high speed aspiration orrubber dam.
*** Remove onlysufficient enamel to access thecarious lesion.
*** 2 With excavator or slow runningdental handpiece and round bur,remove only infected tissue.
*** Stopimmediately when resistance is felt.
*** 3 Apply Aseptim solution to the wholelesion with brush.
*** Work into surface ofinfected tissue and cover the wholecavity.
*** Continue for 60 seconds.
*** 4 Place DB686 HELEN+ handpiece tipover the site of the lesion and holdjust above the cusps on the occlusalsurface of the tooth.
*** 5 Activate red light for 60 seconds andhold the tip centred on the lesion.
*** Lightpenetrates through the surroundingtissue to activate the Aseptim solutionand disinfects the remaining lesion.
*** Iftwo interproximal surfaces are involved,disinfect each surface separately.
*** 6 After disinfection, either; a) fill cavityimmediately with suitable restorativeor b) before final filling, treat remaining softened tissue with remineralisingagent.
*** Note: glass ionomers areparticularly appropriate to seal andassist in remineralisation of deepcavities.

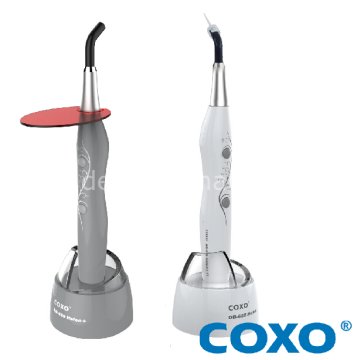

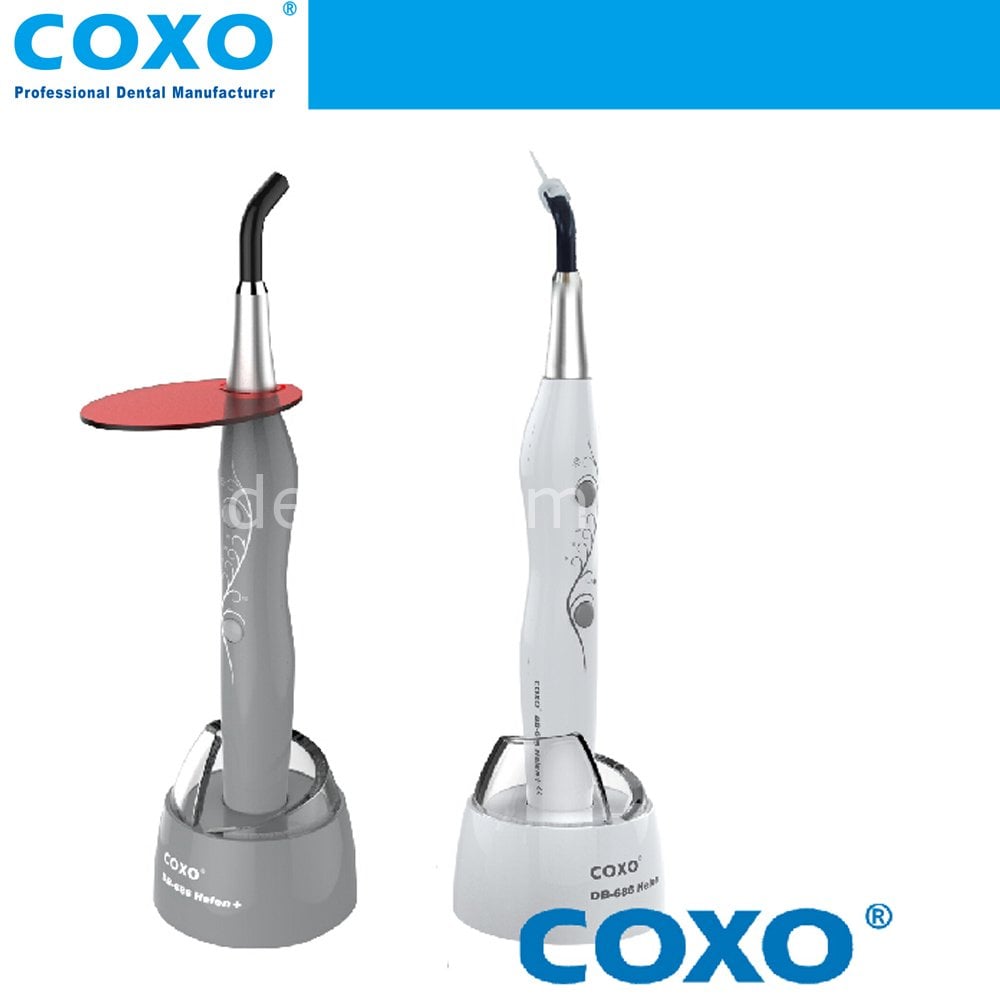

*** DB-686HELEN+Muti-function:LED curing light & light activated disinfection two light source Automatically identify the blue and red light.
*** TECHNICAL: 1.charger working voltage:AC100-240V,50/60HZ 2.Curing light wavelength：420-480mw/cm2 3.light cativated disinfection: wavelength：630nm(+-20) Intensity:2000-3000mw/cm2 working time:60s,120s
