Satalec XMind DC Röntgen Cihazı Duvara Monte
Marka
Stok Kodu
ACT.F03808
Barcode
9780200106825
Nasıl Alırım
Sadece sağlık profesyonellerinin kullanıma uygundur.
- *** Sitemizde satılan tıbbi ürünler profesyonel hekim kullanımına yöneliktir.
- *** Profesyonellerin satın alması için üye olması gerekmektedir.
- *** Profesyoneller harici satışı yasaktır. Lütfen üye olmayın.
- *** Bu kural sağlık bakanlığı tarafından yönetmelik ile belirlenmiştir.
- *** Satışı yasak olmayan tıbbi olmayan ürünler için bizimle irtibata geçebilirsiniz.

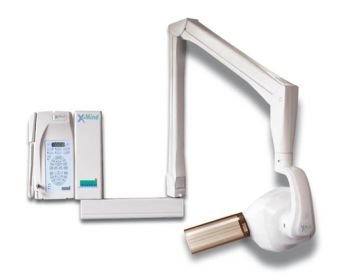

Acteon | Satalec XMind DC Röntgen Cihazı Duvara Monte
Ction İn Exposure Time, Compared With Monophased Units.

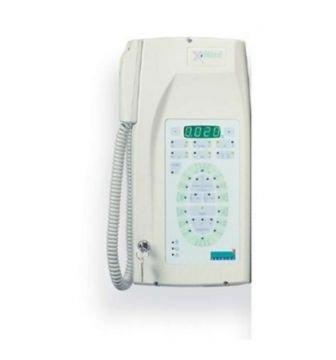

The Timer Can Control Up To Two Dc Generators.
The Extremely Short Exposure Times (Minimum 0.02 Sec.) Are Suitable For Digital Radiology With Ccd, Cmos Or Phosphor Plate Sensors (Radiation İs 50% Less That That Used With "E” Type Films).
Classification : Electromedical Equipment, Class 1 Type B Supply Voltage : 230V - Monophase 50/60Hz Power Absorption At 230V : 1.4Kva Resistance Of The Line : 0.5 Ohms X-Ray Tube : New Toshiba Dg 073B Dc Tube High Voltage : 60-70Kv Anode Current : 4-8Ma Focal Spot : 0.7Mm Total Filtration : Equivalent To 2Mm Al At 70Kv Tube İnherent Filtration : Equivalent To 0.8Mm Al At 70Kv Leakage Radiation : Less Than 0.25Mgy/Hour Maximum At A Distance Of 1M From Focal Spot Long Cone : Focus To Cylinder Tip Distance = 31Cm (12”) Timer : Exposure Time Can Be Set From 0.02 To 3.2 Seconds X-Ray Emission Control : "Dead Man” Switch With 3M Spiral Cable Total Weight : 25Kg (Weight Of The Head : 5.5Kg).
The Timer Can Control Up To Two Dc Generators.
The Extremely Short Exposure Times (Minimum 0.02 Sec.) Are Suitable For Digital Radiology With Ccd, Cmos Or Phosphor Plate Sensors (Radiation İs 50% Less That That Used With "E” Type Films).
Classification : Electromedical Equipment, Class 1 Type B Supply Voltage : 230V - Monophase 50/60Hz Power Absorption At 230V : 1.4Kva Resistance Of The Line : 0.5 Ohms X-Ray Tube : New Toshiba Dg 073B Dc Tube High Voltage : 60-70Kv Anode Current : 4-8Ma Focal Spot : 0.7Mm Total Filtration : Equivalent To 2Mm Al At 70Kv Tube İnherent Filtration : Equivalent To 0.8Mm Al At 70Kv Leakage Radiation : Less Than 0.25Mgy/Hour Maximum At A Distance Of 1M From Focal Spot Long Cone : Focus To Cylinder Tip Distance = 31Cm (12”) Timer : Exposure Time Can Be Set From 0.02 To 3.2 Seconds X-Ray Emission Control : "Dead Man” Switch With 3M Spiral Cable Total Weight : 25Kg (Weight Of The Head : 5.5Kg).
